Customized rubber compression grommet

FUSHIYUAN are a manufacturer which specialized on customizing parts, molding, extrusion, die-cutting etc,. We have our own mold workshop, CNC departments, compressing workshop and printing workshop , that will fully ensure the delivery time adequately .

Warmly welcome you to ask for quotation!

● All shape can be customized according to your drawings or samples

● 1~2 hours fastest quotation

● Samples come out within 48 hours

● Meeting your requirement for hardness, color, etc.

● Free samples can be provided

● More than 6000+ kinds of different shapes product, which can meet all industries.

CONTACT US NOW!

SPECIFICATION

Rubber compression grommet

Rubber compression grommet is a kind of grommet widely used in our life area.

Firstly compression grommet keeps your cables neat and tidy.

Secondly grommets without the sharp case edges .

Thirdly we can use this heavy duty circular grommet to route cables.

In conclusion,routing cables and wires helps improve airflow.

Item NameCustomized rubber compression grommet
MaterialEPDM, NR, Silicon, FKM,IIR,NBR,SBR,Sponge Rubber, or Custom Compound
(Any custom compound rubber is available)
SpecificationCustomized, according to your drawings
Surface treatmentHigh gloss,fine grain,electroplating,painting,printing,texture etc,or as request
Drawing File2D:DWG,DXF,PDF;3D:IGS,STEP,STP
Duro20~90 shoreA
ColorAs your Pantone # request
High Precision+/-0.01mm

PRODUCT IMAGE

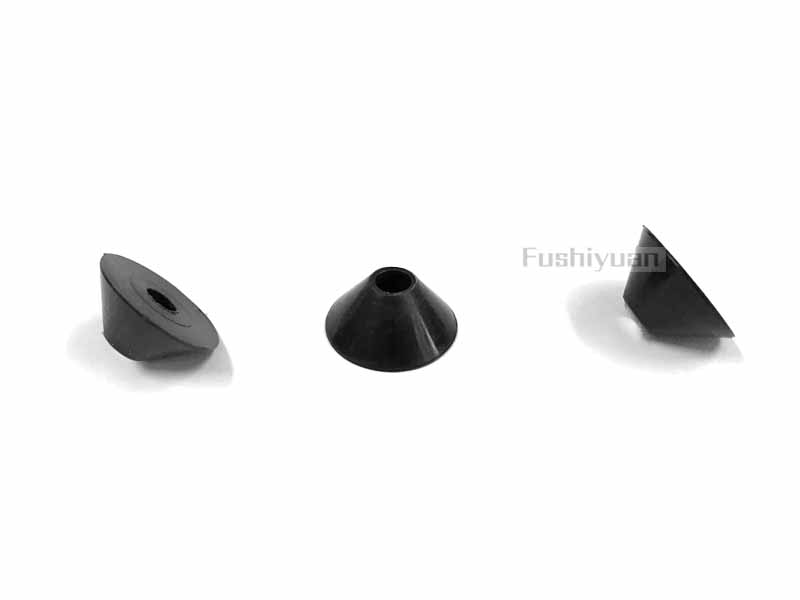

rubber compression grommet

CUSTOMIZED  GROMMETS

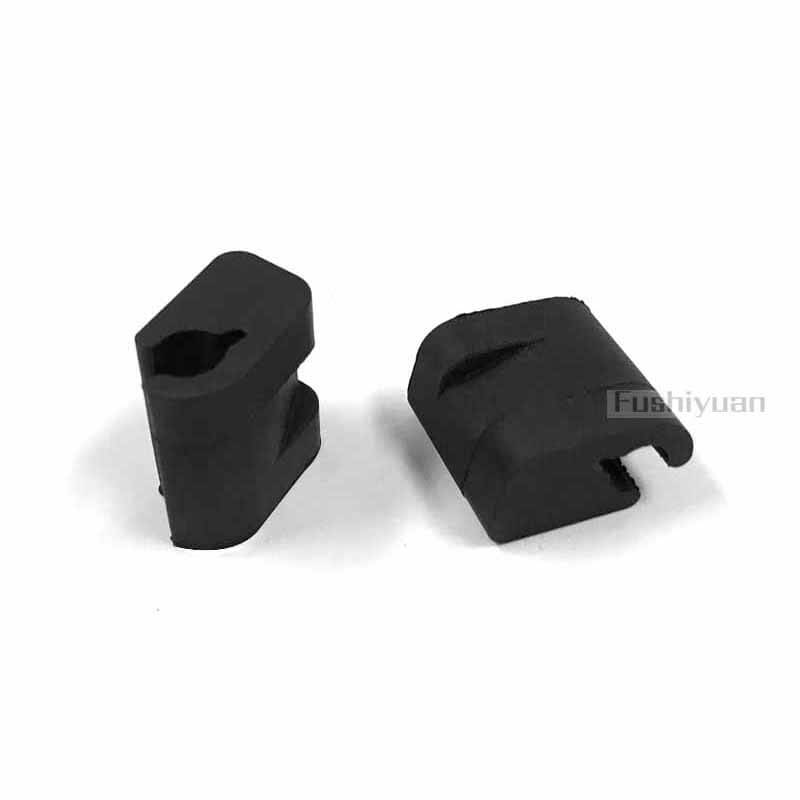

Rubber compression grommet

Rubber compression grommet is one kind of grommet helps protect wire and cable from sharp metal edges .That is to say ,it helps eliminate the risk of wire, cord or hose chaffing on applications due to metal drill holes or cutouts.

Because rubber grommet is flexible and enables simple installation. It snaps the rubber grommet directly into the drill hole easily. With oval rubber grommets ensure your wiring projects and applications .That plays an important role on sustainable and protected when using it .

Rubber compression grommet factory-Fushiyuan

We can produce by your samples or technical drawings. OEM and ODM are available.

STOCK  GROMMETS

Use our Stock Grommets in your application to save time and money.We have more than 8000kinds of stock grommets for your choices  ,whose size ranged from 20shoreA to 90shoreA .

Do you have all dimensions grommets here ?

As a result ,we have more than 8000kinds grommets here ,but not all .

If the type of stock part fitting for you ,please email us for production !
If the type of parts do not meet your requirements,please email us ,we can customize any part you want !

Can your grommets meet my requirement ?

Rubber oval Grommets have a lot of important uses and purposes. Our grommets have below features:

Firstly good abrasion, heat and oil resistance.
Secondly good anti-aging performance and gas tightness.
Further ease of bonding to other material.
Moreover excellent oxygen and ozone resistance.
In addition Non-flammable,self-extinguish.

Part No.Outside DiaInside DiaGroove DiaGroove WidthOverall Thickness
OG900129×4920×4023×4348
OG900237.2×71.519.2×53.525.2×59.53.57.2
OG900343.5×11230×98.533×101.53.57.2
OG900440×8332×7528×7126
OG900519×3912×3215×3525
OG900610×19.54×13.56×15.525
OG900714×248×1810×2014
OG900814×248×1810×201.54.5
OG900914×248×1810×2025
OG901014×248×1810×202.55.5
OG901114×248×1810×2036
OG901214×248×1810×2047
OG901314×298×2310×2514
OG901414×298×2310×251.54.5
OG901514×298×2310×2525
OG901614×298×2310×252.55.5
OG901714×298×2310×2536
OG901814×298×2310×2547
OG901914×347×2710×3014
OG902014×347×2710×301.54.5
OG902114×347×2710×3025
OG902214×347×2710×302.55.5
OG902314×347×2710×3036
OG902414×347×2710×3047
OG902519×3412×2715×3014
OG902619×3412×2715×301.54.5
OG902719×3412×2715×3025
OG902819×3412×2715×302.55.5
OG902919×3412×2715×3036
OG903019×3412×2715×3047
OG903119×41.512×34.515×37.515
OG903219×41.512×34.515×37.51.55.5
OG903319×41.512×34.515×37.526
OG903419×41.512×34.515×37.52.56.5
OG903519×41.512×34.515×37.537
OG903619×41.512×34.515×37.548
OG903721×5112×4215×4515
OG903821×5112×4215×451.55.5
OG903921×5112×4215×4526
OG904021×5112×4215×452.56.5
OG904121×5112×4215×4537
OG904221×5112×4215×4548
OG904326×4617×3720×4015
OG904426×4617×3720×401.55.5
OG904526×4617×3720×4026
OG904626×4617×3720×402.56.5
OG904726×4617×3720×4037
OG904826×4617×3720×4048
OG904926×5617×4720×5015
OG905026×5617×4720×501.55.5
OG905126×5617×4720×5026
OG905226×5617×4720×502.56.5
OG905326×5617×4720×5037
OG905426×5617×4720×5048
OG905526×6617×5720×6015
OG905626×6617×5720×601.55.5
OG905726×6617×5720×6026
OG905826×6617×5720×602.56.5
OG905926×6617×5720×6037
OG906026×6617×5720×6048
OG906133×5822×4725×5015
OG906233×5822×4725×501.55.5
OG906333×5822×4725×5026
OG906433×5822×4725×502.56.5
OG906533×5822×4725×5037
OG906633×5822×4725×5048
OG906733×70.521×58.525×62.515
OG906833×70.521×58.525×62.51.55.5
OG906933×70.521×58.525×62.526
OG907033×70.521×58.525×62.52.56.5
OG907133×70.521×58.525×62.537
OG907233×70.521×58.525×62.548
OG907333×8321×7125×7515
OG907433×8321×7125×751.55.5
OG907533×8321×7125×7526
OG907633×8321×7125×752.56.5
OG907733×8321×7125×7537
OG907833×8321×7125×7548
OG907938×6826×5630×6016
OG908038×6826×5630×601.56.5
OG908138×6826×5630×6027
OG908238×6826×5630×602.57.5
OG908338×6826×5630×6038
OG908438×6826×5630×6049
OG908538×8326×7130×7516
OG908638×8326×7130×751.56.5
OG908738×8326×7130×7527
OG908838×8326×7130×752.57.5
OG908938×8326×7130×7538
OG909038×8326×7130×7549
OG909138×9826×8630×9016
OG909238×9826×8630×901.56.5
OG909338×9826×8630×9027
OG909438×9826×8630×902.57.5
OG909538×9826×8630×9038
OG909638×9826×8630×9049
OG909750×9036×7640×8016
OG909850×9036×7640×801.56.5
OG909950×9036×7640×8027
OG910050×9036×7640×802.57.5
OG910150×9036×7640×8038
OG910250×9036×7640×8049
OG910350×11036×9640×10016
OG910450×11036×9640×1001.56.5
OG910550×11036×9640×10027
OG910650×11036×9640×1002.57.5
OG910750×11036×9640×10038
OG910850×11036×9640×10049
OG910960×11046×9650×10016
OG911060×11046×9650×1001.56.5
OG911160×11046×9650×10027
OG911260×11046×9650×1002.57.5
OG911360×11046×9650×10038
OG911460×11046×9650×10049
